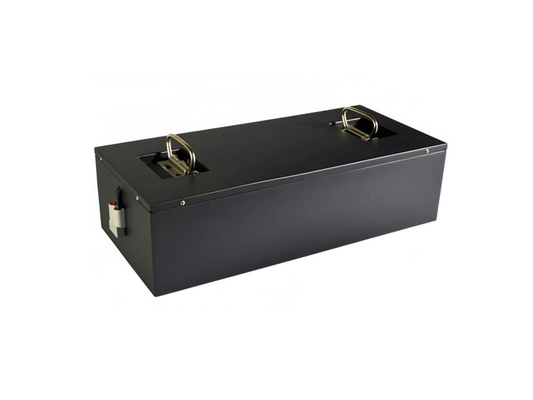

25.6v 90ah Long-Run AGV Battery LiFePo4 Power for Heavy Loads & Extended Shifts

  • 25.6v 90ah Long-Run AGV Battery LiFePo4 Power for Heavy Loads & Extended Shifts
Luogo di origine Cina
Marca JHOTA
Quantità di ordine minimo 5
Prezzo Negoziabile
Imballaggi particolari Cartone
Tempi di consegna 20-30 giorni
Termini di pagamento T/t
Capacità di alimentazione 500pcs

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Chatta: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome prodotto Batteria di stazione base di comunicazione Tensione nominale 25.6v
Capacità nominale 90Ah Vita ciclo 2000 volte
Garanzia 5 anni
Evidenziare

25.6V 90Ah AGV LiFePO4 battery

,

heavy load AGV lithium battery

,

long-run electric vehicle battery with warranty
Lasciate un messaggio
Descrizione di prodotto
25.6v 90ah Long-Run AGV Battery LiFePo4 Power for Heavy Loads & Extended Shifts
Specification
Item Parameter
Nominal Voltage 25.6V
Rated Capacity Nominal Capacity: 90Ah
Charging Voltage 29.2V
Charging Method Constant Current / Constant Voltage
Discharge Cut-off Voltage 18.4V
Rated Charging Current ≤15A
Maximum Continuous Charging Current ≤30A
Internal Resistance <100mΩ
Rated Discharge Current ≤50A
Maximum Continuous Discharge Current ≤200A (not exceeding 1 hour)
Overcharge Protection Voltage 3.65±0.05V (adjustable)
Over-discharge Protection Voltage 2.3±0.01V (adjustable)
Overcurrent Protection Discharge overcurrent value: ≥360A
Short Circuit Protection

Condition: External circuit short, Recovery:

Disconnect short circuit
Operating Temperature Range Charge: 0~55°C, Discharge: -20~55°C
Storage Temperature Range Less than 7 days: 20~65°C
Weight Approx. 18kg
Dimensions Customizable
Product Description:
25.6v 90ah Long-Run AGV Battery LiFePo4 Power for Heavy Loads & Extended Shifts 0
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
25.6v 90ah Long-Run AGV Battery LiFePo4 Power for Heavy Loads & Extended Shifts 1
Application:

1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy

for continuous movement and lifting.

2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).

3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with

minimal charging downtime.

25.6v 90ah Long-Run AGV Battery LiFePo4 Power for Heavy Loads & Extended Shifts 2

Our Factory
25.6v 90ah Long-Run AGV Battery LiFePo4 Power for Heavy Loads & Extended Shifts 3
Packing&Shipping
25.6v 90ah Long-Run AGV Battery LiFePo4 Power for Heavy Loads & Extended Shifts 4
